AE6 Series

The AE6 SMART solar powered lighting solution is ideal for large public areas. These include parks, city plazas, outdoor car parks, highways, and airports. In addition to being eco-friendly and sustainable, these lights are also easy to install and maintain.

AE3C SERIES

Applications:
• Recreation Areas
• Shared Pathways
• Car Parks
• Thoroughfares

AE5 SERIES

Applications:
• Recreational Areas
• Shared Pathways
• Roads & Streets
• Car Parks

AE6 SERIES

Applications:
• Recreation Areas
• Shared Pathways
• Roads & Streets
• Car Parks

FREEDOM Plus

Applications:
• Recreational Areas
• Shared Pathways
• Roads & Streets
• Car Parks

FREEDOM Lite

Applications:
• Recreational Areas
• Shared Pathways
• Roads & Streets
• Car Parks

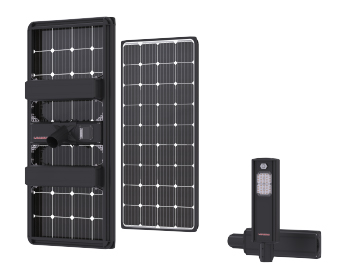

AE6 Solar Street Light

Leadsun integrates cutting-edge technology with highly efficient PV modules, powerful LiFePO4 batteries, and a smart controller into a sleek and compact design for the AE6 ULTRON version. Featuring a separate and flexible cut-off luminaire, the AE6 can be adapted to a variety of lighting angles, thereby improving product performance and efficiency. This design also aims to simplify installation and enhance the user experience.

Solar Panel Solar Panel Motion Sensor Controller LED Lamp Lithium-ion Battery Lithium-ion Battery X Bracket Bird Spike

SPECIFICATIONS
Solar Module Power Output	150W	200W
LED Output	30~50W	50~80W
Lithium Battery Capacity	64Ah (820Wh)	96Ah (1229Wh)
Warranty	5 years	5 years

Intelligent Steady State Controller

Leveraging its extensive industry experience, Leadsun has independently developed intelligent controllers for solar street lights. The AE steady state controller not only enables smart control of lighting but also offers comprehensive protection for the entire system. Equipped with a waterproof programming connector, a charging connector, and a switch, the controller not only facilitates ease of use but also provides convenience for future maintenance needs.

Battery Management System

The ULTRON series adopts an environmentally friendly LiFePO4 battery that does not contain any harmful metal ingredients. The depth of discharge has been increased from 60% to 90% and the cycle life is 5 times that of lead-acid battery.

The battery also features an exclusive patented battery management technology that extends its lifespan to over 8 years. This technology ensures that the battery is charged and discharged optimally, preventing overcharging or over-discharging, which can damage the battery. As a result, the ULTRON series offers superior battery life, reliability, and performance, making it an excellent choice for solar street lighting applications.

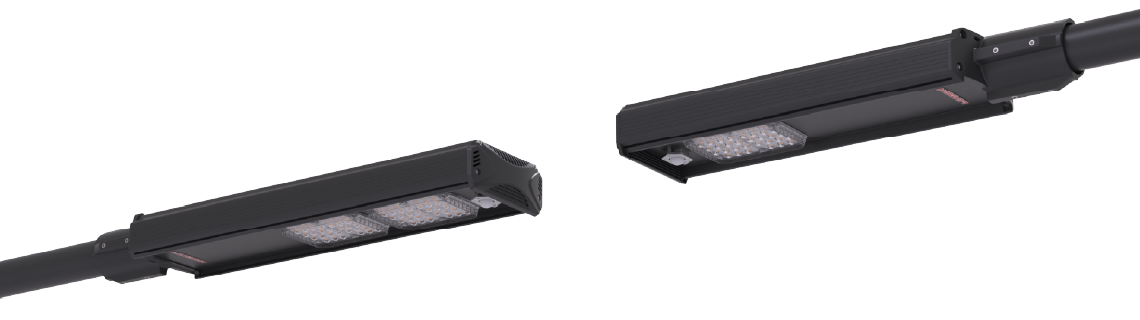

Freedom Classic LED Fixture

The AE6 series utilizes high-efficiency LEDs, achieving up to 180lm/W luminous efficiency (@25°C). The lights feature a sealing lens made of strong anti-ultraviolet PC, providing anti-aging and anti-impact performance for long-term usage.
With a unique cutoff design, the optic lens eliminates lighting pollution, contributing to environmental preservation.

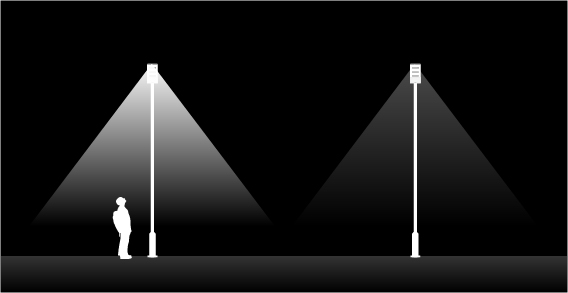

PIR Motion Detection System

PIR motion detection system can automatically regulate the light source from full bright to dim mode to increase battery autonomy.

100% Brightness when motion is detected.

30% Brightness when no motion is detected.

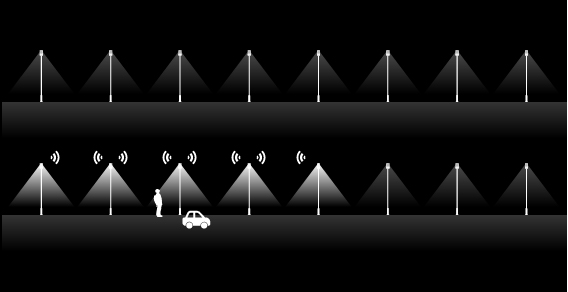

Dynamic Intelligent Sensing System

Leadsun has created an autonomous adaptive lighting control system which is achieved by sensing an approaching vehicle or pedestrian using PIR sensors and integrated 24Ghz wireless transmission modules, then switching ON a block of streetlights ahead of the vehicle with higher intensity lighting. As the vehicle passes by, the trailing lights turn dim automatically. When there are no vehicles detected, then all the lights will remain dim.
